Xianda Stone Machinery Granite Marble Bridge Saw Full Automatic High Efficiency Head and Table Rotation 360 Degree Stone Bevel Cutting Machine

Name: Xianda Stone Machinery Granite Marble Bridge Saw Full Automatic High Efficiency Head and Table Rotation 360 Degree Stone Bevel Cutting Machine
Brand: Xianda Machinery
Price: 1 USD

Cheap Xianda Stone Machinery Granite Marble Bridge Saw Full Automatic High Efficiency Head and Table Rotation 360 Degree Stone Bevel Cutting Machine for sale

Brand Name : Xianda Machinery

Model Number : ZDCM-400

Certification : CCC, SONCAP, GOST, ISO, CE

Place of Origin : Jinjiang, Fujian, China

MOQ : 1

Price : To Be Negotiable

Payment Terms : L/C,D/P,T/T,Western Union,D/A

Supply Ability : 1000 Sets/Year

Delivery Time : 30 days

Contact Now

Basic Info.

Model NO.

ZDCM-400

Application

Construction, Stone Industry

Source Voltage

380V

Automation

Automatic

Cutting Ability

High Speed

Control

PLC

Certification

CCC, SONCAP, GOST, ISO, CE

Blade Diameter

Φ300-Φ600

Max Processing Size

3200*2000*80mm

Dimension of Worktable

3200*2000mm

Workable Tilting Degree

0-85°

Worktable Rotation Degree(Optional)

0-90° / 0-360°

Main Motor

15kw

Water Consumption

4m3/H

Outline Dimension

5000*3100*2600mm

Transport Package

Load in a 40 Feet Container

Specification

5000*3100*2600mm

Trademark

Xianda

Origin

Jinjiang, Fujian, China

HS Code

84641090

Production Capacity

1000 Sets/Year

Product Description

Xianda Stone Machinery Granite Marble Bridge Saw Full Automatic High Efficiency Head and Table Rotation 360 Degree Stone Bevel Cutting Machine

Product Description

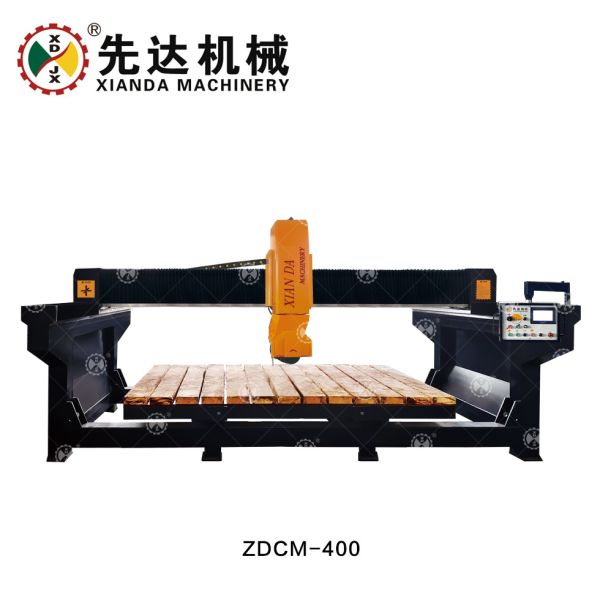

ZDCM-400
Monoblock bridge cutting machine(special for Marble and sintered stone)
This machine adopts Microcomputer system, easy to operate; Integrated structure, easy to install;
The frame of the machine boday is proceesed and formed by CNC gantry milling center at one time, using high-precision linear guide sliders, grinding-grade ball screws, and high -end servo systems. It greatly improves the stablilty, processing accuracy and production efficiency of the equipment, and reduces the failure rate. it is suitable for all kinds of large-scale plate processing with high precision requirements and high value.

Technical Parameter

Parameter	Unit	ZDCM-400
Blade diameter	mm	φ300-400
Max processing size	mm	*3200200080*
Dimension of worktable	mm	*32002000**
Worktable tilting degree	°	0-85°
Worktable rotation degree	°	0-90°,0-360°
Main motor	kw	15
Water consumption	m³/h	3
Outline dimension	mm	*500031002600*
Gross weight	kg	5500

Xianda Machinery

Fujian Jinjiang Xianda Machinery Co.Ltd was established in 1985 and have been dedicated to the development and producing of a serious of column making machine,wire saw stone cutting machine,block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc.
With the rapid development of company ,we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep " Advanced Tecnology and High Quality" as our aim. We have developed a range of 'Xianda' Brand special stone shape processing machines.

Exhibition

Our Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* After-sales service 24 hour on line.
If you have any problem,just conact our sales department,customer service department,etc at any time.
